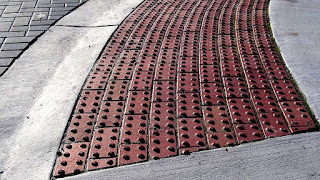

Tactile paving (also called truncated domes, detectable warnings, Tactile Ground Surface Indicators, Tactile Walking Surface Indicators, detectable warning surfaces) is a system of textured ground surface indicator found on footpaths, stairs and train station platforms to assist pedestrians who are visually impaired.
Tactile warnings provide a distinctive surface pattern of truncated domes, cones or bars detectable by long cane or underfoot which are used to alert the visually impaired of approaching streets and hazardous surface or grade changes. There is a disagreement in the design and user community as to whether installing this aid inside buildings may cause a tripping hazard.
Originally instituted at pedestrian crossings and other hazardous road situations by Japan, the United Kingdom, Australia and the United States picked up the standard in the early 1990s, after passage of the Americans with Disabilities Act (ADA). Canada started incorporating them into transportation first in the 1990s, and then added them to other aspects of the built environment in the early 2000s.
Video Tactile paving
History
The original tactile paving was developed by Seiichi Miyake in 1965. The paving was first introduced in a street in Okayama city, Japan, in 1967. Its use gradually spread in Japan and then around the world.
Today yellow tactile pavings are ubiquitous throughout Japan. For aesthetic reasons, for example in front of hotels, the colour of the paving can change to reflect the colour of the pavement or stone floor. Sometimes the paving contours are produced with steel stripes and dots.
The tactile tiles spread rapidly via their adoption at Japan National Railways (later known as Japan Railway). The system was formally named "Hazard Guide for the Visually Impaired" (????????) in 1985. It's modern form can be classified into two types. One has small, round bumps upon the surface of the block, which are felt through a sole. The second type of a block is a directional aid. Long and slender bumps are installed in the surface.
However, many types have been manufactured as an experiment and installed. This has resulted in a situation which may be confusing for both the visually impaired and for the elderly. Usually the color of a tile is used to check the proper direction. If the color is not clear, there may be confusion. This has led to standardisation of the system throughout Japan.
Now, these tiles are spreading throughout the world. There are many tactile tiles installed at subway stations and on sidewalks in Seoul, Korea. The installation situation in Seoul is more challenging than in Japan. Since the surface of various sidewalks in Seoul are not flat, there are many places which do not convey the meaning of a Tactile Tile.
The Tactile Tiles were adopted at each facility used for the Sydney Olympic Games in Australia and are ubiquitous in Australian public transportation facilities. Such a trend has also started in the UK and the US and throughout the world.
Maps Tactile paving
Tactile patterns
Blister tactile
These are used for pedestrian crossings. The purpose of the blister surface is to provide a warning to visually impaired people who would otherwise, in the absence of a change of height of > 25 mm, find it difficult differentiate between where the footway ends and the carriageway begins. The surface is therefore an essential safety feature for this group of road users at pedestrian crossing points where the footway is flush to the carriageway to enable wheelchair users to cross unimpeded. The profile of the blister tactile surface consists of rows of flat topped blisters in a square pattern.
Offset blister tactile
The offset blister tactile is also known as the "platform edge (off-street) warning surface". The purpose of this surface is to warn visually impaired people of the edge of all off-street railway platforms. The off-set blister tactile surface consists of flat-topped domes (blisters), spaced 66.5mm apart from the center of one dome to the next one.
The tactile paving units can be manufactured in any suitable paving material and may be any color that provides a good contrast with the surrounding area to assist partially sighted people. The current guidance recommends that the off-set blister tactile surface be used for all off-street rail platforms including:
- Heavy rail platforms
- Off-street light rapid transit (LRT) platforms
- Underground platforms
It should not be used for on street (LRT) platforms
Lozenge tactile
The lozenge tactile is also known as the platform edge (on-street) warning surface. "The purpose of the platform edge (on-street) warning surface is to warn visually impaired people that they are approaching the edge of an on-street light rapid transit (LRT) platform." The profile of the lozenge tactile warning surface comprises rows of 6mm (±0.5mm) high lozenge shapes, which have rounded edges so as not to cause a trip hazard. The tactile paving units can be manufactured in any suitable paving material. The surface is usually buff colored, but can be any color, other than red that provides a good contrast with the surrounding area to assist partially sighted people.
The lozenge tactile paving units should be installed to a depth of 400mm parallel to the platform edge and a minimum of 500mm back from the edge. It should never be installed closer to the edge than this because pedestrians may not have sufficient time to stop walking once they have detected the tactile warning surface.
Corduroy hazard warning tactile
"The purpose of the corduroy surface is to warn visually impaired people of the presence of specific hazards: steps, level crossings or the approach to the on-street light rapid transit (LRT) platforms. It is also used where a footway joins a shared route. It conveys the message 'hazard, proceed with caution.'"
The profile of the corduroy tactile surface comprises rounded bars running transversely across the direction of pedestrian travel. The bars are 6mm (±0.5) high, 20mm wide and spaced 50mm from the centre of one bar to the centre of the next. The tactile paving units can be manufactured in any suitable paving material. The surface is usually buff coloured, but can be any colour, other than red, that provides a good contrast with the surrounding area to assist partially sighted people.
The corduroy tactile can be used for any situation (other than pedestrian crossings) where visually impaired individuals need to warn of a hazard, such as:
- The top and bottom of stairs
- At the foot of a ramp
- At level crossing
- Where people may unintentionally walk directly on to the platform at a railway station
- Where a footway joins a shared route
Cycle way tactile
"The purpose of the tactile surface used in conjunction with a segregated shared cycle track/footway is to advise visually impaired people of the correct side to enter. The purpose of the central delineator strip is to help visually impaired pedestrians to keep to the pedestrian side."
The cycle way tactile comprises a series of continuous raised, flat-topped bars, each 5mm (±0.5mm) high, 30mm wide and spaced 70mm apart. The central delineator strip should be 12 -20mm high, 150mm wide with sloping sides and a flat top of 50mm. The delineator strip should be made of a white material.
The tactile surface should be used on any segregated shared route where the pedestrian side is not physically separated from the cyclist side. The tactile surface should be laid at the beginning and end of the shared segregated route, at regular intervals along its length and at any junctions with other pedestrians or cyclist routes.
Directional or guidance tactile
"The purpose of the guidance path surface is to guide visually impaired people along a route when the traditional cues, such as a property line or kerb edge, are not available. It can also be used to guide people around obstacles, for example street furniture in a pedestrianized area. The surface has been designed so that people can be guided along the route either by walking on the tactile surface or by maintaining contact with a long cane." The guidance tactile compromises a series of raised, flat-topped bars running in the direction of pedestrian travel. The bars are 5.5mm (±0.5) high, 35mm wide spaced 45mm apart, It is recommended that the guidance path tactile be in a contrasting color to the surrounding area so as to assist partially sighted people. The guidance surface is recommended for use in the following circumstances:
- Where the traditional guidance given by a standard footway between the property line and carriageway does not exist
- Where pedestrians need to be guided around obstacles
- Where a number of visually impaired people need to find a specific location and in transport terminals to guide people between facilities.
The role of color and contrast
The Department of Transport guidance on the installation and use of tactile paving places a heavy emphasis on the role of contrast. The guidance repeatedly states that tactile paving should be chosen to provide strong color contrast with the surrounding paving material as studies have shown that this aids partially sighted individuals. Most tactile paving is available in a range of colors and materials making good color contrast easy to achieve with appropriate choice of tactile paving. There are only two cases where the color of a tactile has a specific meaning:
- Red is reserved for use with blister tactile to denote a controlled pedestrian crossing
- Buff blister tactile are reserved for use at uncontrolled pedestrian crossings
Where installation of tactile paving of a specified color e.g. red blister paving at a controlled crossing, would result in the tactile paving being of a similar color to the surrounding paving a contrast strip of at least 150mm should be installed to clearly demarcate the tactile area.
Detectable warning surface specifications
Size
- ISO/FDIS 23599,Assistive products for blind and vision-impaired persons--Tactile walking surface indicators.
- CEN/TS 15209, Tactile paving surface indicators produced from concrete, clay and stone
Location
- ISO/FDIS 23599,Assistive products for blind and vision-impaired persons--Tactile walking surface indicators.
- CEN/TS 15209, Tactile paving surface indicators produced from concrete, clay and stone
Dome size and spacing
- ISO/FDIS 23599,Assistive products for blind and vision-impaired persons--Tactile walking surface indicators.
- CEN/TS 15209, Tactile paving surface indicators produced from concrete, clay and stone
Dome alignment
- ISO/FDIS 23599,Assistive products for blind and vision-impaired persons--Tactile walking surface indicators.
- CEN/TS 15209, Tactile paving surface indicators produced from concrete, clay and stone
Opposing Views
Arguments have been made that the money spent on installing tactile pavement could have been much better spent making other improvements that visually impaired people have actually requested, such as faster repairs to broken pavement , and that more thought should have been put into balancing the needs of visually-impaired pedestrians and mobility-impaired pedestrians, such as wheelchair and cane users who can trip on the bumps.
By country
North America
Canada
In Canada detectable warning surfaces have in recent years started to be found in many provincial and municipal building standards (supplements to the building codes). These standards require detectable warning surfaces in prescribed locations, such as on the slopes of pedestrian curb cuts/curb ramps, exterior and interior ramps, at the top of stairs and on landings, and at the edge of rail platforms. Detectable warning surfaces include both truncated domes and tactile bars.
One of the first architectural standards for buildings requiring the use of detectable warning surfaces was the City of London Facility Accessibility Design Standards (FADS). The difference from the American ADA standards is the two different types of tactile surfaces required. At stairs, detectable warning surfaces are required (long bars that in USA are called "directional bars" but are placed at perpendicular to the main path of travel), whereas offset truncated dome detectable warning surfaces are used for ramps, elevated platforms (like those found at the edges of boarding platforms in transit facilities), and at other areas where pedestrian ways blend with vehicular ways.
Mexico
Tijuana uses landmark installations before crosswalks that are similar to those used in California. There are, however, no installations of Tactile ground surface indicators.
United States
In the U.S., tactile warnings systems are required by the ADA. The federal government, through studies and guidance provided by advocates and the Access Board, now mandates detectable warnings in prescribed locations, such as on the surface of pedestrian curb cuts and at the edges of rail platforms. Detectable warnings have been required for the edges of rail platforms in the United States since 1991. Detectable warnings for pedestrian curb cuts were suspended for study in 1994, and became officially required in 2001.
The ADA Accessibility Guidelines (ADAAG) require these warnings on the surface of curb ramps, which remove a tactile cue otherwise provided by curb faces, and at other areas where pedestrian ways blend with vehicular ways. They are also required along the edges of boarding platforms in transit facilities and the perimeter of reflecting pools. The raised pattern of domes also known as truncated domes are the preferred design for detectable warning tiles and pavers.
The usage of tactile paving in many circumstances will be required in the United States as part of the Americans with Disabilities Act. Adoption of truncated dome-mats has been controversial in some areas including Sacramento, CA.
Specifications for current enforceable ADA detectable warnings truncated domes regulation for the general public, is the United States Department of Justice 28 CFR part 36 Revised as of July 1, 1994.
Excerpt from ADA 4.3 Accessible Routes, 4.3.6 Surface Textures, 4.5 Ground Floor Surfaces, 4.5.3 - Carpet, 4.5.4 - Gratings - Textures. To date it appears none-of the detectable warnings manufactured, comply with 4.3.6 of the ADAAG. In addition, testing for being a non-hazardous surface placed in public walkways has not been conducted. In the appendix - some common sense reasons are illustrated about textures and their effects on the mobility impaired - A.4.5 Ground and Floor Surfaces. A4.5.1 General. People who have difficulty walking or maintaining balance or who use crutches, canes, or walkers, and those with restricted gaits are particularly sensitive to slipping and tripping hazards. For such people, a stable and regular surface is necessary for safe walking, particularly on stairs. Wheelchairs can be propelled most easily on surfaces that are hard, stable, and regular. Soft loose sand or gravel, wet clay, and irregular surfaces such as cobblestones can significantly impede wheelchair movement. 705 below has not been adopted by the DOJ for the general public and is therefore not enforced by the DOJ.
Specifications for ADA Detectable Warning Truncated Domes United States Access Board - ADAAG Specifies:
705 Detectable Warnings
705.1 General. Detectable Warnings shall consist of a surface of truncated domes and shall comply with 705.
705.1.1 Dome Size. Truncated domes in a detectable warning surface shall have a base diameter of 0.9 inch (23 mm) minimum and 1.4 inch (36 mm) maximum, a top diameter of 50 percent of the base diameter minimum to 65 percent of the base diameter maximum, and a height of 0.2 inch (5.1 mm).
705.1.2 Dome Spacing. Truncated domes in a detectable warning surface shall have a center-to-center spacing of 1.6 inches (41 mm) minimum and 2.4 inches (61 mm) maximum, and a base-to-base spacing of 0.65 inch (17mm) minimum, measured between the most adjacent domes on a square grid.
705.1.3 Contrast. Detectable Warning Surfaces shall contrast visually with adjacent walking surfaces either light-on-dark, or dark-on-light.
Asia
China
Tactile ground surface indicators are installed broadly in major cities such as Beijing, Shanghai, Dalian and Guangzhou. They can also be found winding through suburban areas surrounding major cities; the volume of blocks installed is second only to Japan. Both warning and directional blocks are used, and installed in a manner roughly the same as in Japan. Some areas have their own rules, however, such as in parts of Guangzhou where no blocks are installed where directional blocks intersect, a location where warning blocks would normally be installed. Block colors include yellow, grey, green, brown and beige. As in Korea, because installation methods are adopted whole cloth from Japan, many of the same errors are found. Maintenance is also inconsistent; here and there one sees broken blocks that have been left unrepaired.
Hong Kong
In Hong Kong, warning and directional blocks are found at and around rail stations and warning blocks are installed before crosswalks and at medians in the city center. Blocks are yellow, silver, black, grey, green and brown. Installation methods are roughly the same as in Japan.
Indonesia
In Jakarta, Indonesia, warning blocks indicating the entrance to parking lots are installed on the sidewalks in Jakarta's Jalan Thamrin business area, an installation method unique to Indonesia. Blocks of this type are in- stalled at nearly every parking lot entrance, making for a great many installations. Warning blocks are also in- stalled before some crosswalks in the Jalan Thamrin area. No blocks are installed outside this area, however. Blocks are yellow in color.
Japan
Although the tactile pavings were first installed in Okayama city in 1967 and were widely installed throughout Japan, tactile pavings were not standardized until 2001 by Japanese Industrial Standards (JIS). Tactile pavers are installed at almost all curb ramps in Japan. Directional tactile pavers are installed on sidewalk and pedestrian crossings frequently used by visually impaired people such as a route between transit facilities and buildings such as hospitals, school for visually impaired, community centre, major shopping centres, government buildings and so on.
Since 1994, Japanese law require buildings exceeding floor area of 2,000 square metres (22,000 sq ft) to install and maintain tactile pavings near stairs, ramps, escalators and major pathway. Schools, hospitals, theatres, arenas, community centre, exhibition halls, department stores, hotels, office, multidwelling units or senior homes with floor space less than 2,000 square metres (22,000 sq ft) must spend reasonable effort to install and maintain tactile pavings inside the building, but not required. The original law was replaced by another law in 2006 with wider scope including outdoor areas.
Also by law, all transit facilities in Japan must install directional tactile pavers connecting the path from public entrance to the boarding area or manned booth. All stairs, escalators and ramps must be marked with blister tactile pavers. Airport boarding bridge is exempt from installing tactile pavers, given handrail is installed and other technical requirements are met. Boarding areas for passenger ferries are also exempt if the area is exposed to waves and tactile pavers create trip hazard.
Malaysia
In Kuala Lumpur, blocks are installed mainly at rail, subway, LRT and monorail stations and the surrounding sidewalks. In some locations warning and directional blocks are installed as in Japan while in other locations directional indicators are carved into the pavement and warning blocks are installed where direction- al markers intersect and where pedestrians are to stop. The latter practice is often followed at rail and LRT stations but the two types were found to coexist at one location. Blocks are yellow, silver and grey.
Singapore
In Singapore, warning and directional blocks are installed primarily around subway stations and in some housing estates. Many crosswalks are also equipped with warning blocks. Installation rules are roughly the same as in Japan. Blocks are silver, yellow and grey.
South Korea
In Korea, warning blocks and directional blocks are in- stalled in accordance with Japanese rules in many locations including sidewalks, subway and rail stations and platforms, public facilities and large shopping centers. The configuration of the blocks, with the exception of some subway stations in Seoul, is the same. Blocks are yellow, silver, brown, white and grey. Because installation methods are adopted whole cloth from Japan, many of the same errors are found.
Taiwan
Taiwan As in Korea and China, in Taiwan warning blocks and directional blocks are installed in accordance with rules nearly identical to those in Japan. Most blocks are yellow, with grey blocks also in use. Tactile ground surface indicators are frequently installed across the entire sloped area leading to a crosswalk, creating an obstacle for wheelchair users and others. In addition, although there are many stepped areas on sidewalks in the city center, very few are marked with warning blocks. This is dangerous for people with impaired vision and fails to accommodate their needs.
Thailand
In Bangkok, Warning and directional blocks are used on many side- walks in central Bangkok. Warning blocks are also in- stalled at the top and bottom of stairways at subway and monorail stations. Blocks are not, however, in- stalled at rail stations or rail platforms. Installation rules are roughly the same as in Japan. Blocks are yellow or grey. Many damaged blocks seem to be left unrepaired. Bangkok is a city with many vendors who set up shop on sidewalks; these frequently end up covering the blocks.
India
In the metropolitan cities of Mumbai and Delhi, warning and directional blocks, resembling those in Japan, have been installed in sidewalks leading to, and inside metro stations. Delhi Metro is the most accessible public transport infrastructure in the country. It has tactile paving from entry to exit. Such tiles can also be located on pavements near shopping plazas, and particularly around the Delhi University campus. These tiles come in yellow. Although, the tiles within the metro stations are continually cared-for, the maintenance of those set over the sidewalks is generally neglected. The Jawaharlal Nehru University, Delhi also has tactile paving on its walkways.
India has one of the largest population of people with disabilities. Still the development of pedestrian walkways with tactile paving is at infancy in the country. Government of India has launched Accessible India Campaign to make the nation's infrastructure more inclusive and accessible on 2015.
The upcoming Kochi Metro rail project in state of Kerala will also have entry to exit tactile paving, in the lines of Delhi Metro.
Australasia
Australia
The Australian Human Rights and Equal Opportunity Commission (HREOC) released Guidelines on access to buildings and services in 2007, under the Disability Discrimination Act 1992. This recommends the use of Australian Standard AS/NZS 1428.4:2002 Design for access and mobility - Tactile indicators. The standard specifies the use of truncated cones, rather than domes (as used in the USA). HREOC describe the use of the standard.
In Sydney, blocks are installed at rail, monorail and light rail station platforms, before exterior stairways, before exterior obstacles, at airports and at bus stops. Warning blocks and directional blocks are similar to those used in Japan, and installed in the same way, including at the Opera House and other well-known tourist spots. Unlike many other countries, however, blocks are not installed before crosswalks. As some rail, mono-rail and light rail stations, directional blocks lead from at or near the ticket gates to the platform. Blocks are yellow, silver, blue, green and grey. Blue blocks are frequently used at rail stations while yellow is often used at monorail and light rail stations.
New Zealand
AS/NZS 1428.4.1:2009 provides the requirements relating to tactile ground surface indicators in New Zealand. Generally, the Standard (AS 1428.4.1:2009) makes available the provisions relating to tactile indicators within the built environment, while the New Zealand Transport Agency's RTS 14 'Guidelines for facilities for blind and vision impaired pedestrians' facilitates the requirements for tactile indicators within the roading environment. Both apply various similar compliance prerequisites to tactile indicators such as visual contrast, slip resistance in wet and dry conditions, the mean coefficient of friction, resistance to impact (sheer strength), weathering resistance and UV stability, wear resistance and general adhesion/bond strength, particularly when immersed in water.
In general, tactile indicators in New Zealand are required to:
- be detectable by tactile means;
- have a luminance-contrast to the surrounding substrate of:
- not less than 30% across its entire area, if the tactile indicators are the same colour as the underlying surface for integrated tactile indicators;
- not less than 45% if the tactile indicators are discrete (individually drilled and glued); and
- not less than 65% for a diameter 25±1 on the raised section for composite-construction (made of two materials that are different colours) tactile indicators.
- be placed across the direction of travek to ensure detectability; and
- have a top surface that doesn't protrude more than 4-5mm above the substrate.
Warning tactile indicators in New Zealand are mandatory at pedestrian cross-walks (also called pram ramps or kerb crossings in New Zealand), at the approaches to stairways, ramps, escalators and moving walkways, the approach to railway level crossings, bus hoarding areas, median cut-throughs, along the entire length of railway platform edges and before any abrupt changes in grade to the walking surface (1:8 change with a kerb height of more than 70mm). Warning tactile indicators in New Zealand need to be installed to the full width of the approach to the obstacle/hazard so as to minimise the risk of a vision-impaired person stepping over or through the pad and encountering the obstacle. In any event, the warning tactile indicator pad should be no less than 900mm wide, except where it is physically impossible.
Directional tactile indicators are required to be installed at cross-walks, public transport access points and significant public facilities to provide directional guidance for vision-impaired people who have to deviate from the continuous accessible path of travel in order to gain access to the aforementioned. Directional tactile indicators should always point in the directional of travel to achieve this.
Europe
Belgium
In Brussels, blocks are installed before crosswalks, at bus stops and at subway and rail stations and platforms. Most blocks are grey, with yellow, silver and black blocks also used. Brussels has a mix of locations where the blocks (warning and directional) and installation methods are similar to those in Japan and locations where block configuration and installation methods are unique to Belgium. One of the Belgium-specific blocks uses metal disks of roughly 85mm in diameter and 8mm in height. In Japan, the prescribed size of warning block protrusions is 22mm in diameter (±1.5mm) and 5mm in height, a size designed to promote mobility by the visually impaired without impeding the movement of wheelchair users or elderly pedestrians. Given the large size, height and slipperiness of the metal disks used in the Belgian blocks, one suspects that they present a significant obstacle for wheelchair users, children and the elderly. In one part of the city, metal bars are embedded in the road surface where one would expect to find warning blocks (at the top of stairs and escalators, for example). Being only 3mm in height, these protrusions create no obstacle for wheelchair users or elderly pedestrians but also seem likely to go unnoticed by the visually impaired. In some places, similar metal bars are embedded in the road surface and serve a directional function. Rubber warning blocks are also sometimes installed at bus stops where directional blocks intersect. Brussels, therefore, presents a mix of block types and installation styles that may create confusion for people with impaired vision.
France
In Paris, warning blocks are installed before cross- walks, at the top and bottom of stairs leading in and out of subway stations and on subway and train platforms. In some areas, blocks serving a directional function are installed within crosswalks. Most blocks are white but black, grey and pale yellow are also used. To protect the scenery, subway station signs and other prominent manmade objects are not installed near historical sites such as the Arc de Triomphe, the Paris National Opera, the Louvre or the Place de la Concorde but Tactile ground surface indicators, in colors that stand out (white and yellow), are an exception Paris has recently been emphasizing barrier-free accessibility, including such experimental efforts as the uniquely configured blocks installed at the Montparnasse rail station.
Germany
Most railway stations and tram or bus stops are fitted with lines of tactile paving, similar in layout to those in Japan. parallel lines indicate the direction of the line, at intersections, the paved lines cross over. Tactile paving at those locations is usually in white or yellow. Some larger cities, such as Leipzig have installed tactile paving throughout their city centers, including normal signs requesting that the paving be kept free of obstacles.
Italy
From the scientific collaboration between the Italian Union of the Blind and Visually Impaired O.N.L.U.S.and the Association visually impaired O.N.L.U.S.,using industrial partners, from experimental results, was born the "LVE systems", a Tactile paving aimed at the mobility of people with visual acuity difficulties. It is capable to greater autonomy and security for people with visual acuity difficulties in their movements as shown by numerous tests of verification and testing conducted made by Italian Union of the Blind and Visually Impaired and the associations linked to it.
The modular elements that make up the path, with channels specially designed in shape, spacing, height and radius of the relief, allow the blind and partially sighted to achieve a destination through the tactile sense and soles and manual (white stick), hearing, and the contrast of brightness.
Inspired by a few, clear design principles (universality of signs, safety, durability), this product allows endless applications in both exterior and interior. On routes with this system, visually impaired and blind acquire autonomy and mobility, using actively tactile information received by the floor through the shoes and / or the white stick. To visually impaired, also provides a further aid studied through color contrasts between guide way and the surrounding ordinary flooring.
LVE system is equipeed with a tactile TAG-RFG (Radio frequency ground) that are intercepted by an electronic baton.
Netherlands
In Amsterdam, blocks are installed before crosswalks, at medians and on tram and subway platforms. Both warning blocks and directional blocks are installed according to the same rules as in Japan. Netherlands-specific blocks are used in addition to blocks configured like those in Japan. Most directional blocks are white or grey while warning blocks are yellow or grey. Where directional and warning blocks are used together the color of the blocks is often not uniform. Netherlands-specific blocks include some with thin recessed lines. With very little surface irregularity, such blocks are extremely difficult to detect with the feet or a white cane. Grooves carved into the pavement at subway station platforms are also difficult for people with impaired vision to recognize.
Turkey
In Izmir, tactile ground surface indicators are installed at many locations throughout the city. They are prevalent in the Karsiyaka, Alsancak and Konak districts on sidewalks running along the Gulf of Izmir. They are also located around ferry buildings and metro stations. In Istanbul, the train stations have ongoing works for cautionary, tactile yellow lines. Within this framework, they are also currently working on the installation of tactile pavings which guide the visually impaired people from entering the station entrance area until boarding the trains.
United Kingdom
In London, tactile ground surface indicators are installed at many locations throughout the city, near historical buildings like Big Ben, Buckingham Palace and the British Museum as well as in downtown and residential areas. Tactile ground surface indicators are installed in accordance with unique standards established by the United Kingdom's Department for Transport. Blocks with dots and blocks with bars are used, but both types are intended as warning blocks; neither serves a directional function. Blocks are mainly installed before crosswalks, at medians, at station platforms and at the top and bottom of stairways. Blocks with dots are for installations at crosswalks, medians and station platforms while blocks with bars are for installations at stairways. The color of blocks installed before crosswalks is also supposed to vary with crosswalk type: red blocks are to be used before controlled crossings, such as zebra crossings (where pedestrians always have the right of way), pelican crossings (equipped with push-button traffic lights) and puffin crossings (with sensor-equipped push button traffic lights). Other colors (often buff) are to be used at other crosswalks where automobiles have the right of way. The difference in color is intended to assist people with low vision navigate the crosswalk safely, but many locations do not conform to the established colors. Different color blocks are also sometimes installed when repairs are made. Blocks are installed in an L-shaped configuration at crosswalks with push-button traffic signals, with the corner of the L marking the location of the push button. Blocks with bars are installed at the top and bottom of stairways such that the direction of the bars is parallel to the long dimension of the treads.
Standards
- ISO/FDIS 23599,Assistive products for blind and vision-impaired persons--Tactile walking surface indicators.
- CEN/TS 15209, Tactile paving surface indicators produced from concrete, clay and stone
- Internal measures are not harmonized with the technical standards
- Australia / New Zealand AS/NZS 1428.4:2002 Design for access and mobility - Tactile indicators
- New Zealand NZTA RTS14 Guidelines for facilities for blind and vision impaired pedestrians
- United Kingdom BS 7997:2003 Products for tactile paving surface indicators. Specification
- Japan JIS T 9251:2001 Dimensions and patterns of raised of parts of tactile ground surface indicators for blind persons
